Lift and slide door system
AS 178HS PRO SLIM
The solution is used to construct a new generation of large-format, all-glass overhead sliding doors dedicated to residential buildings and other projects where ease of use and movement play an important role.
System dostępny jest we wszystkich schematach zabudowy. Stosowana w standardzie technologia ANTY-BI-METAL zapewnia trwałość i prawidłowe funkcjonowanie niezależnie od różnic temperatur.
Design & functionality
Option of constructing structures in all fitting patterns.
Solutions of all-glass corners and opening corners without a mullion.
The solution of a narrow mullion - 25 mm, 50 mm.
Option to automate leaf movement.
A solution compatible with the Aluron AS M system mosquito net.
Multi-fold constructions based on a two and three-track frame
The solution of a low, warm threshold.
Available in GLASS LINE version with all-glass cladding.
Most profiles cut straight. 10% shorter prefabrication time
Narrow built-in profiles and crimp joints of the aluminium frames.
Option of integrating the door frame completely into the thermal insulation layer
Easier installation of the door leaf. Temperature distribution in the frame.
Możliwość wyposażenia konstrukcji w autorskie antracytowe uszczelki centralne, akustyczne i przyszybowe.
Możliwość wyposażenia konstrukcji w autorskie antracytowe listwy z ABS i wtryskiwane elementy maskujące.
Technical drawings

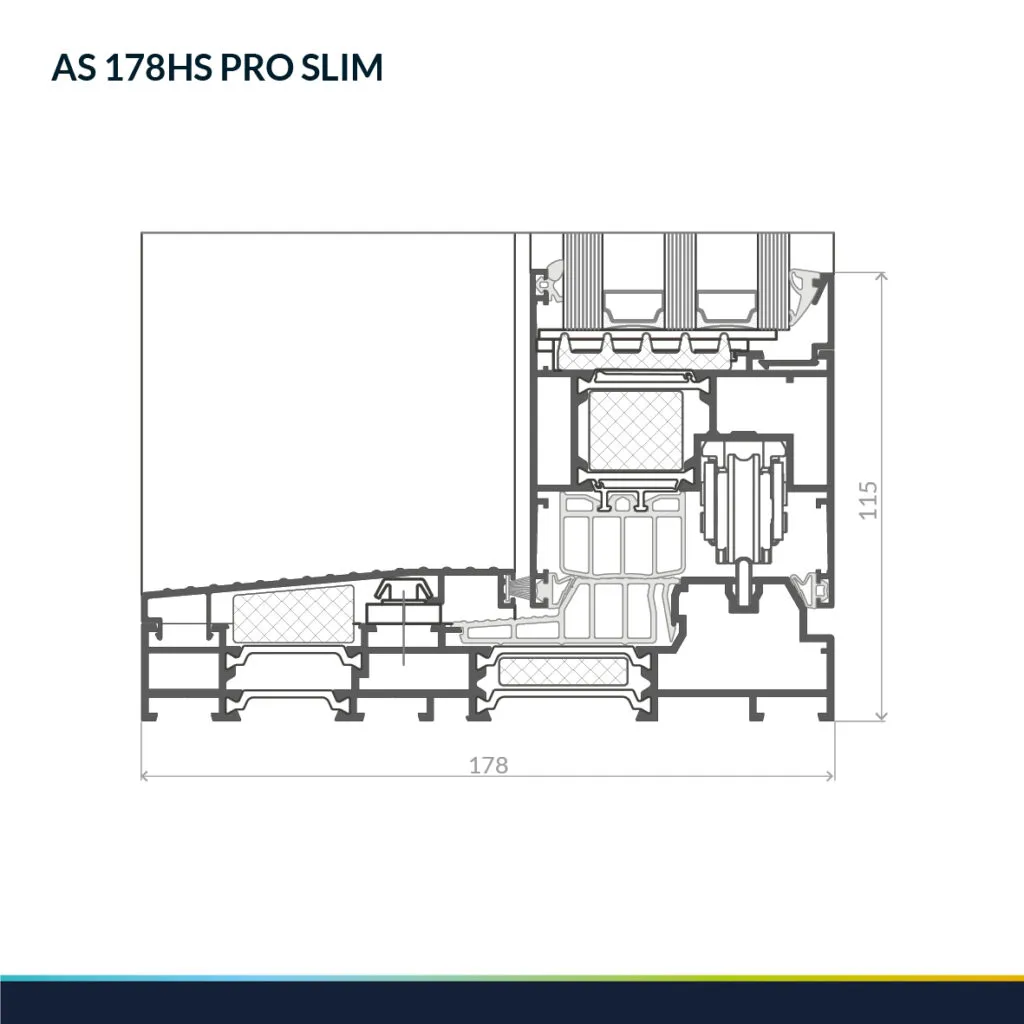

Section through a sliding door at floor level

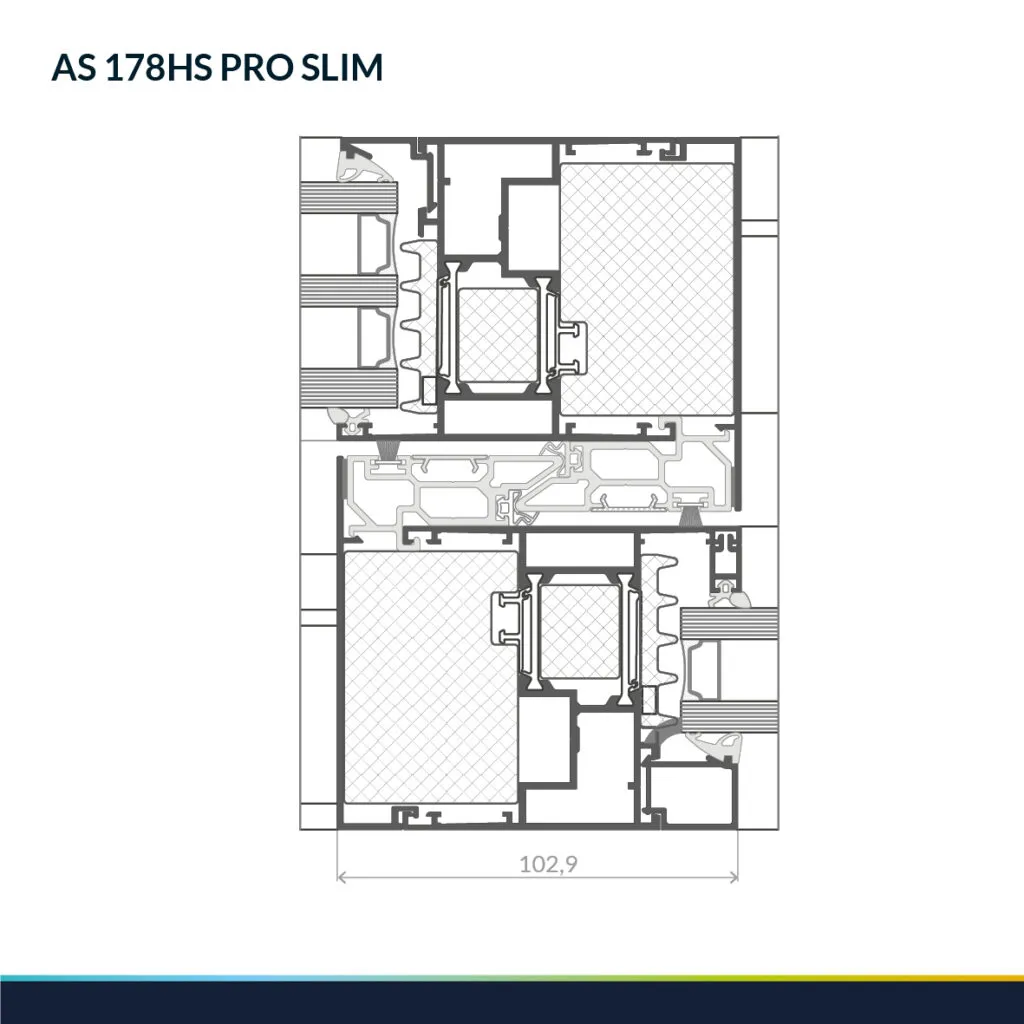

Section through centreline labyrinth

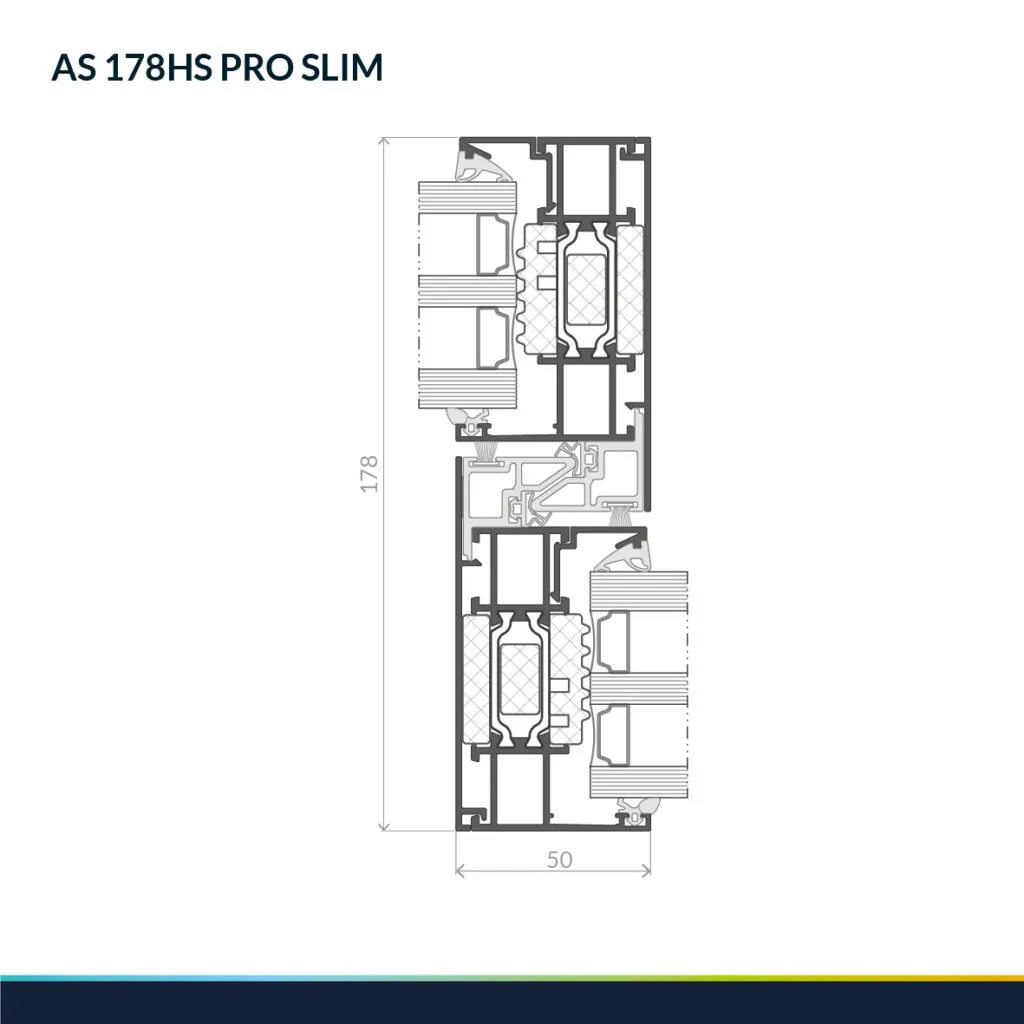

Slim line variant - 50 mm

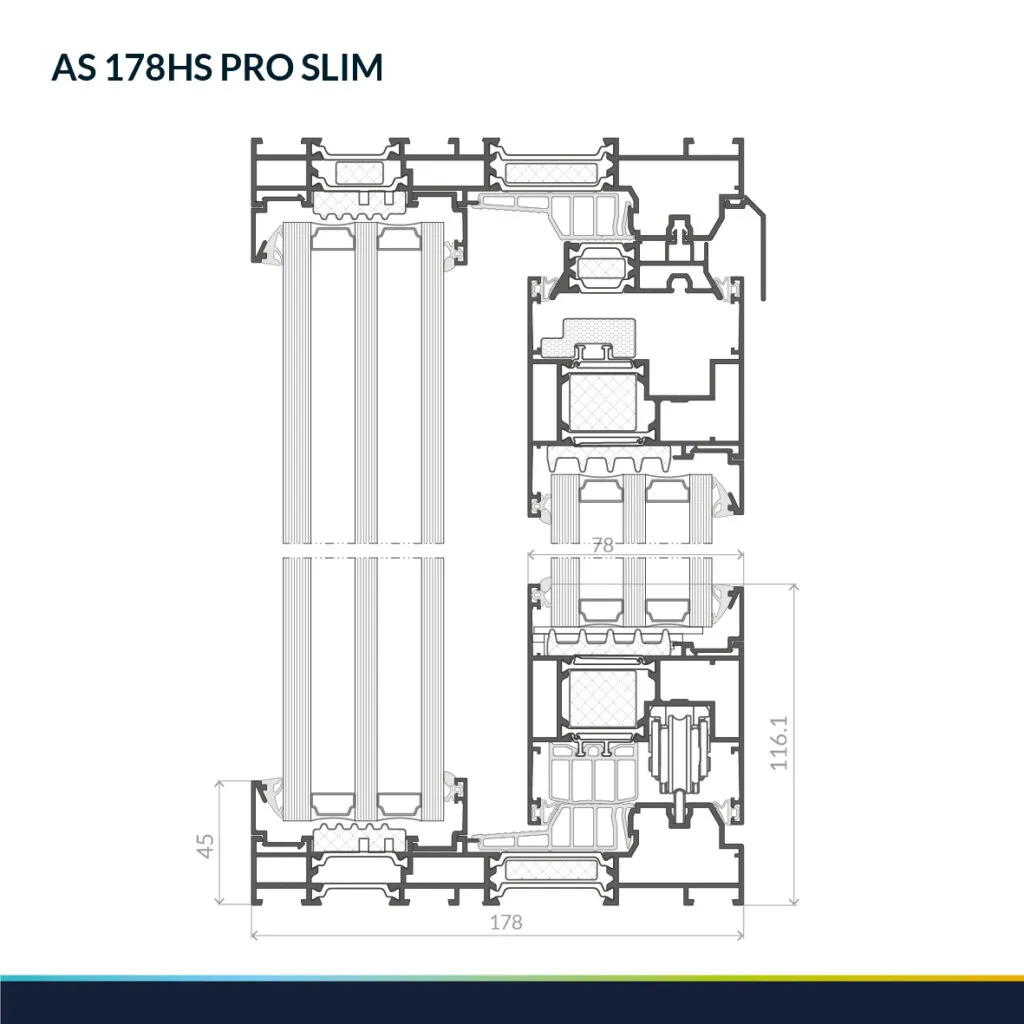

Vertical cross-section – frame with fixed glazing

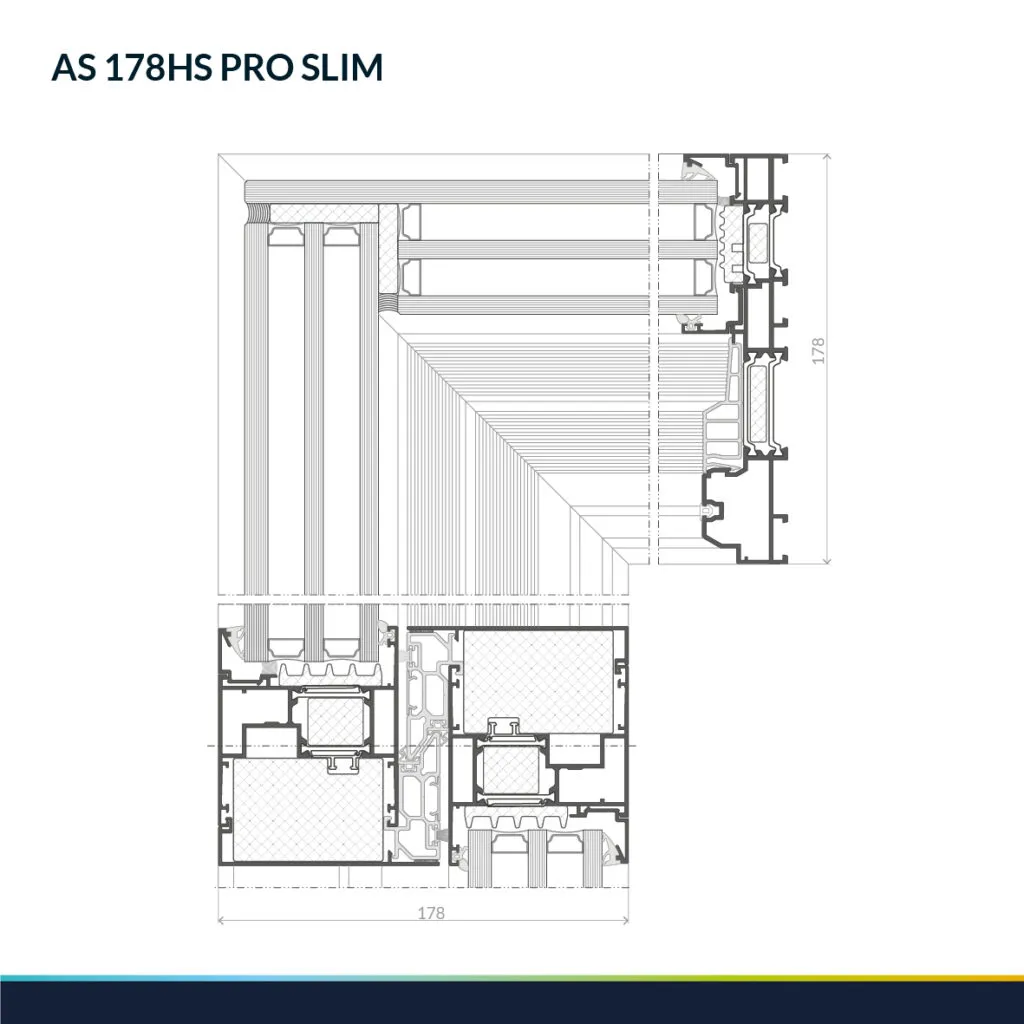

All-glass corner
Vertical cross-section – frame with fixed glazing (42 mm hardware groove)

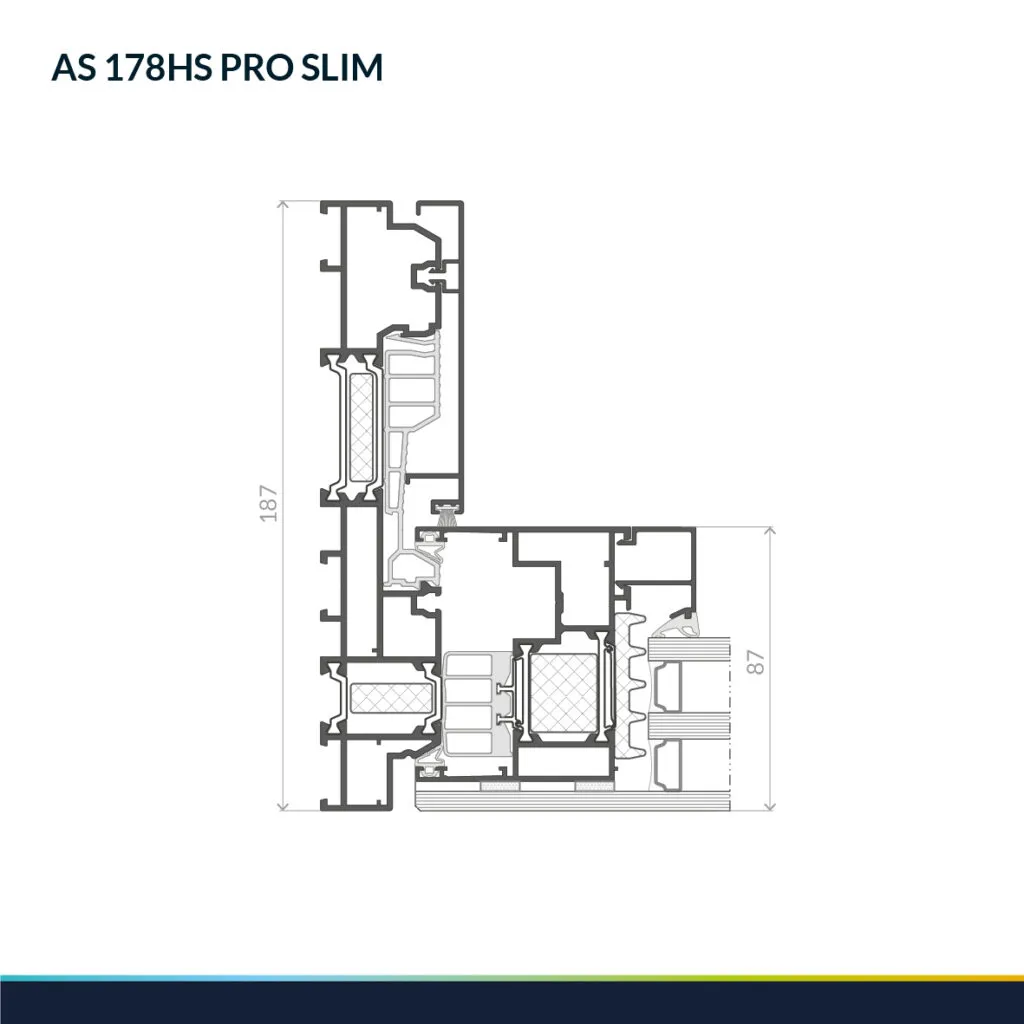

Connection between AS 75 and AS 178HS systems

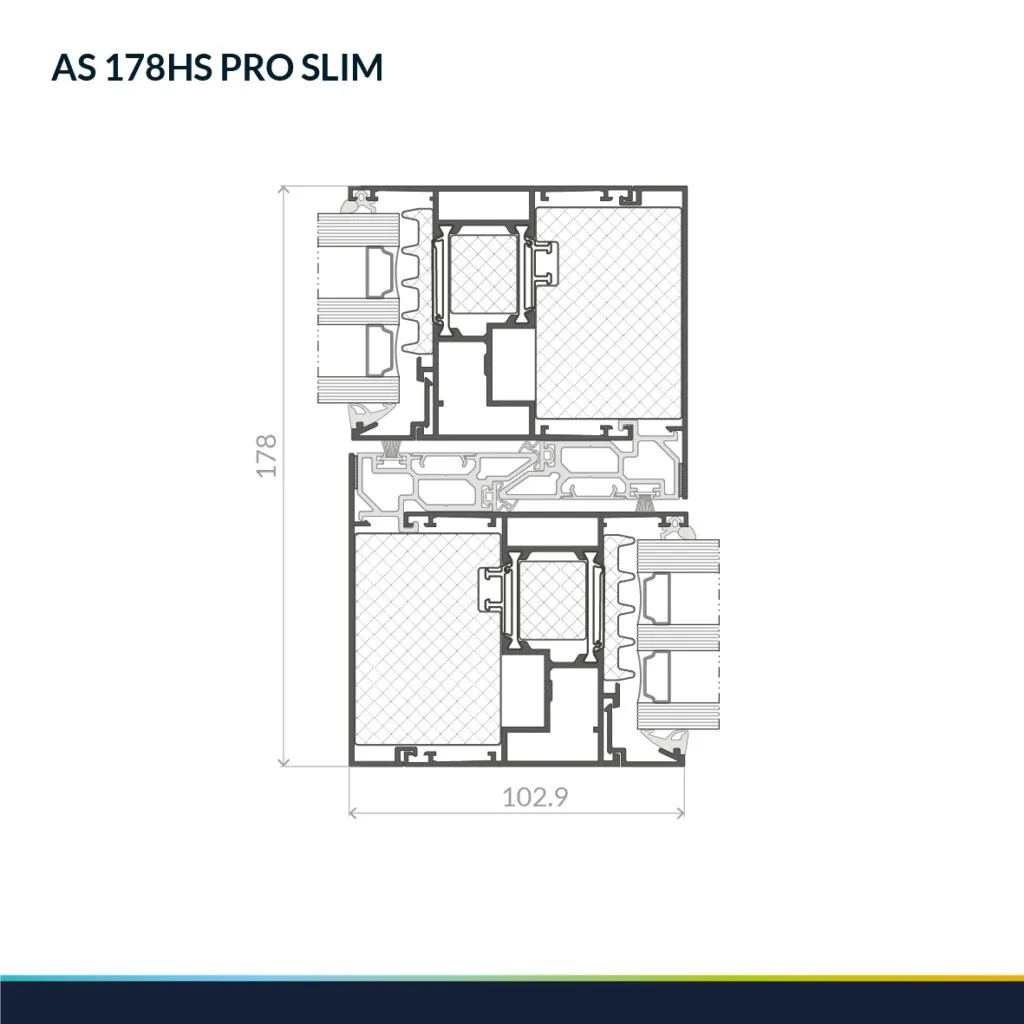

Standard variant
Cross-section through fixed frame
Cross-section through two sashes opening at the corner
Variant with stepped glass

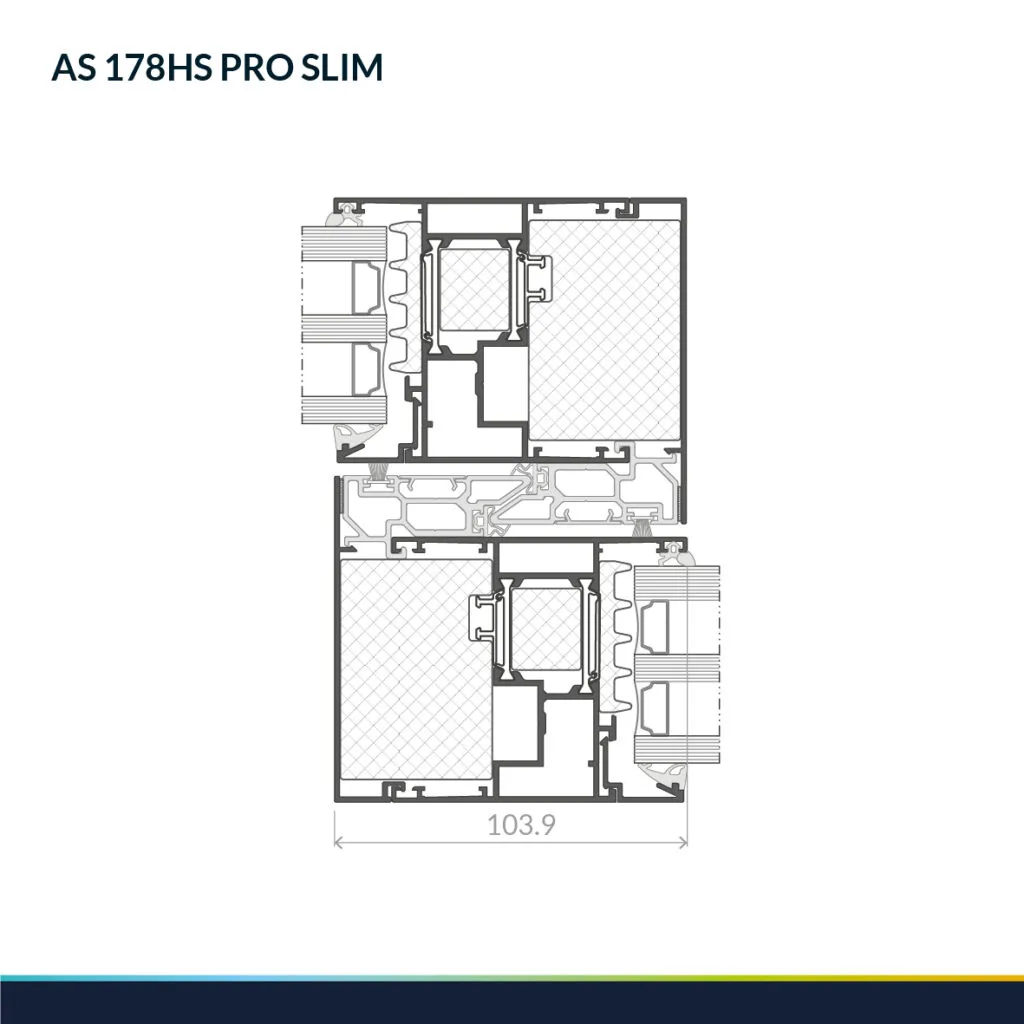

Horizontal cross-section
Horizontal cross-section
Horizontal cross-section
Technical parameters
System characteristics
Max. leaf height
3300 mm
Max. leaf width
3300 mm
Max. leaf weight
600 kg
Min. visible frame width
37 mm
Narrow mullion
25 mm, 50 mm
Max. glazing packet thickness
59 mm
The depth of leaf
78 mm
Selected technical parameters of the system
Thermal insulation Uw
from 0,7 W/m2K
Air permeability
class 4
Water tightness
class E1200
Wind load resistance
class C3/B3
Burglary resistance classes
klasa RC2
Sound insulation
45 (-2;-7) dB
